250L e bokellana ea lik'hemik'hale tse khethehileng tsa boea bo khethehileng

Model:KGB200L/LP

Mochine ona o ikhethang oa 250l o bokella mochine o khethehileng oa lik'hemik'hale o hlophiselitsoeng ka ho khetheha o etselitsoeng ho hlahisa lijana tsa lik'hilomithara tse 220l habeli. Mokhoa oa ho koala o sa tsitsang o nang le mokhoa o hlakileng oa ho khanna ka makhetlo a mabeli

Bonyane: 250lBoima: 39t

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa Specification Application

Karolo e 'meli e pakiloeng e le' ngoe e nang le motsotsoana e mong le e mong ea nang le eona o shoa hlooho, e kopantsoe Ka yuniti e ntle ea tšebetso e phahameng, e tsamaisa litholoana tse ikhethang. Hona Mochini o nang le lik'hemik'hale oa lijana oa lik'hemik'hale o kenyelletsa mokhoku ea 100 Molaoli, letsoho la roboto le tsamaiso e matla ea ho foqoha ka katleho le katleho e ntlafalitsoeng. Meropa e hlahisitsoeng e kopana le litekanyetso tsa boleng bo tiileng, ho kenyelletsa ho feta Likarolo tsa ho lahla tsa 3-limithara tse 3 le ho fumana netefatso ea ho sa bona.

Likarolo le menyetla

Setsi sa bohare se makatsang sa bar sehlekehleke sa enjene sa polokelo ea enjene se shoa hlooho
● Ho fihlela bokhoni bo phahameng ba ho hlahisa moralo o hlophisitsoeng le ho nepahala Ho etsa lihlahisoa, ho khona ho hlahisa likotoana tsa 17-20 / hora
● Lijana tse hlahisitsoeng li ka fetisa tlhahlobo ea 3m le ho tlatsa Setifikeiti

200L barrel boima: 12-15 kg

Lintho tse bonahalang: HMWHDPE

Botenya: 3.5-4 mm

Mochini ona o khethehileng oa boqhemisi oa lik'hemik'hale o hlophiselitsoeng bakeng sa tlhahiso e ntle ea boleng bo holimo-bo-bong ba lik'hilomithara tse 220l e putsoa. Mokhoa oa ho koala o sa tsitsang o sa tsitsang, ho tsamaea ka letsoho la letsoho la ho tjeka ka makhetlo a mabeli a korong ea letsoho

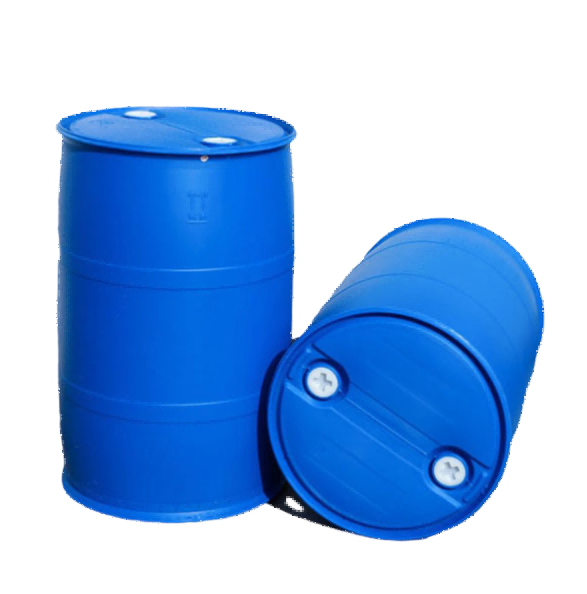

Double layer 220L double-ring chemical barrel blow molding machine

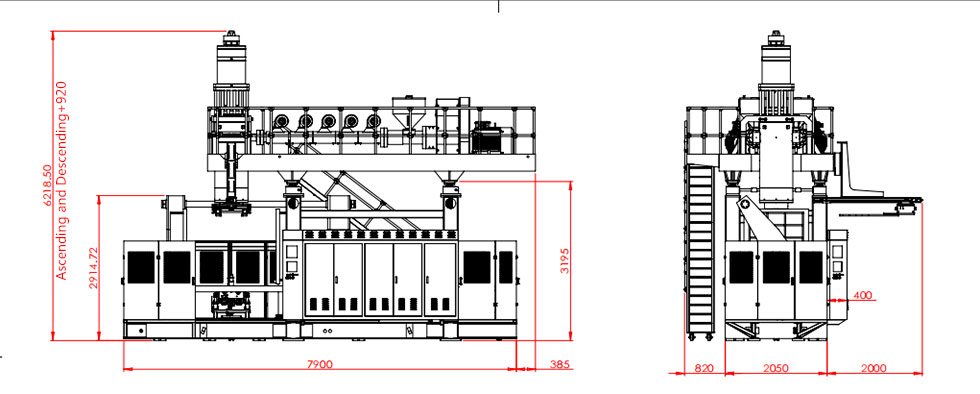

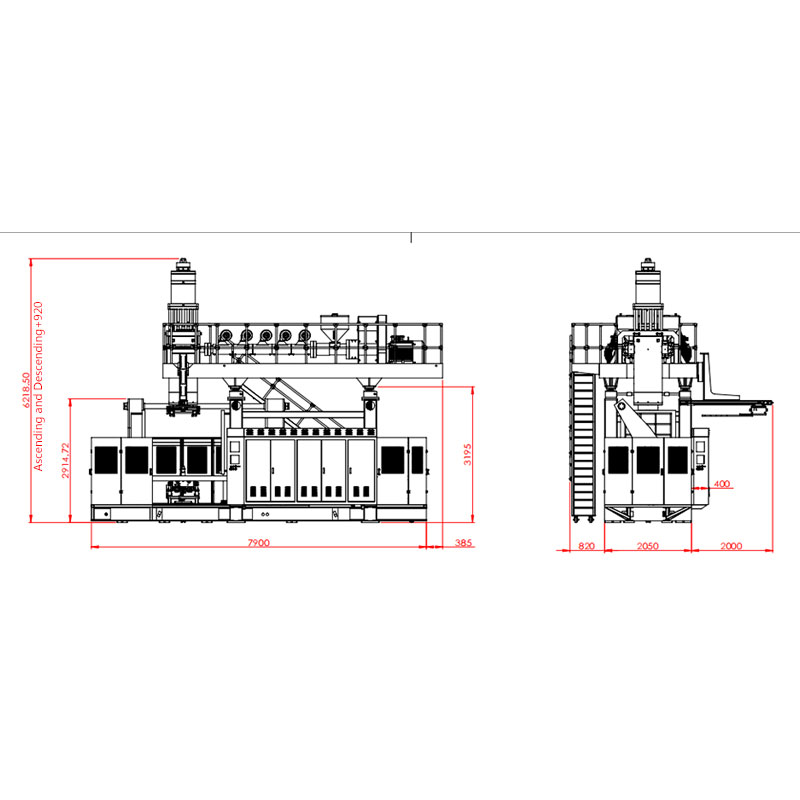

Ho taka

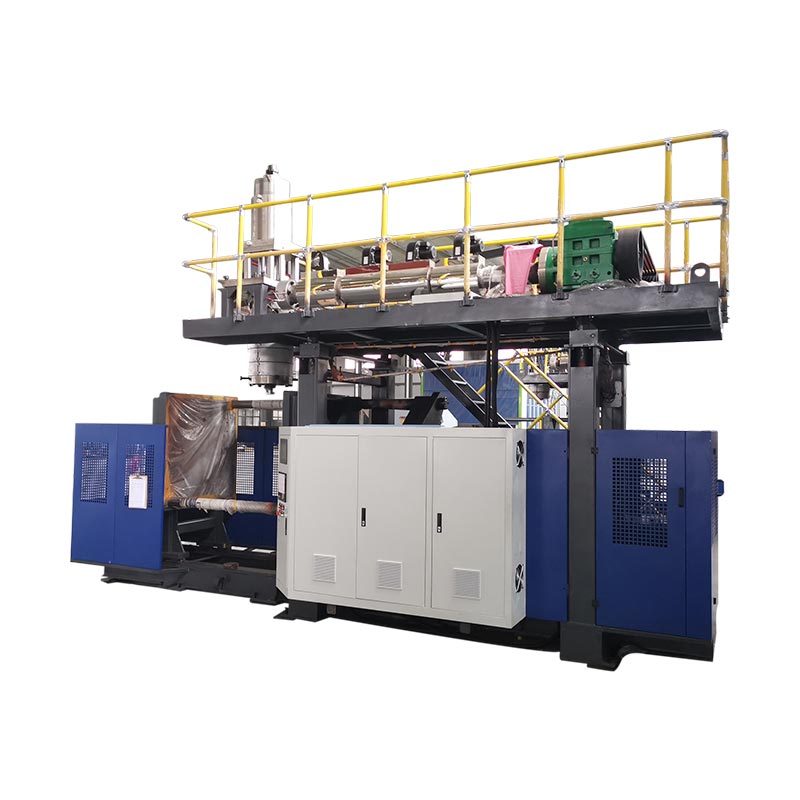

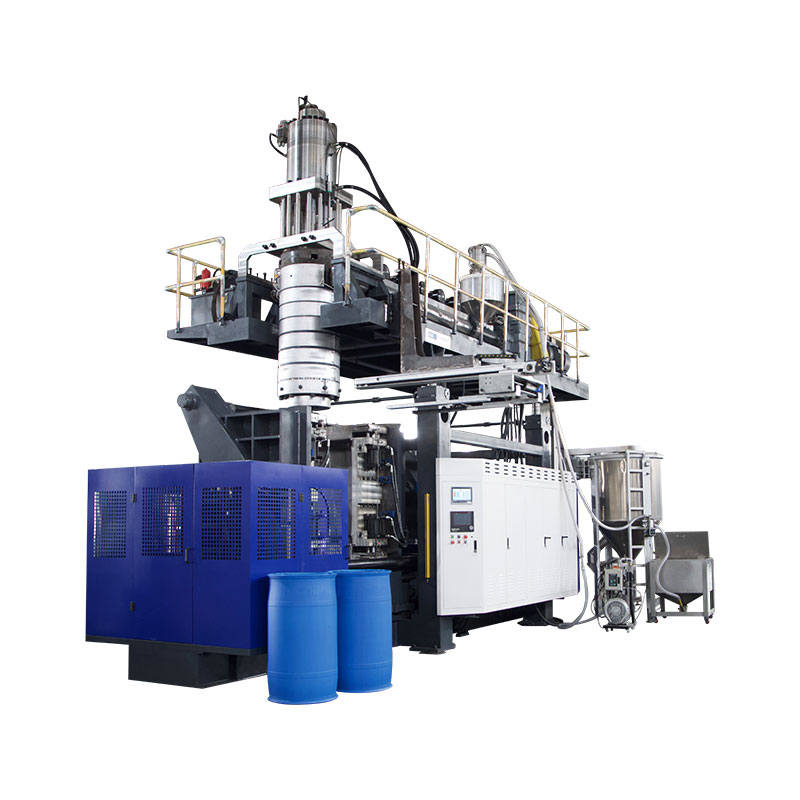

250L accumulate chemical barrel special blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGB200L/LP
Specifications
1	Max container capacity	250 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	9.5 M x 4.1 M x 6.5 M
4	Machine weight	39 T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x 1500 MM
3	Platen opening stroke	800 MM - 1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM×1700 MM
6	Mold thickness	810 MM-950 MM
Power
1	Servo oil pump motor power	37 KW + 22 KW
2	Servopump displacement	200 L/MIN + 138 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW- 80 KW
Extruder unit
1	Screw diameter	100 MMx2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
