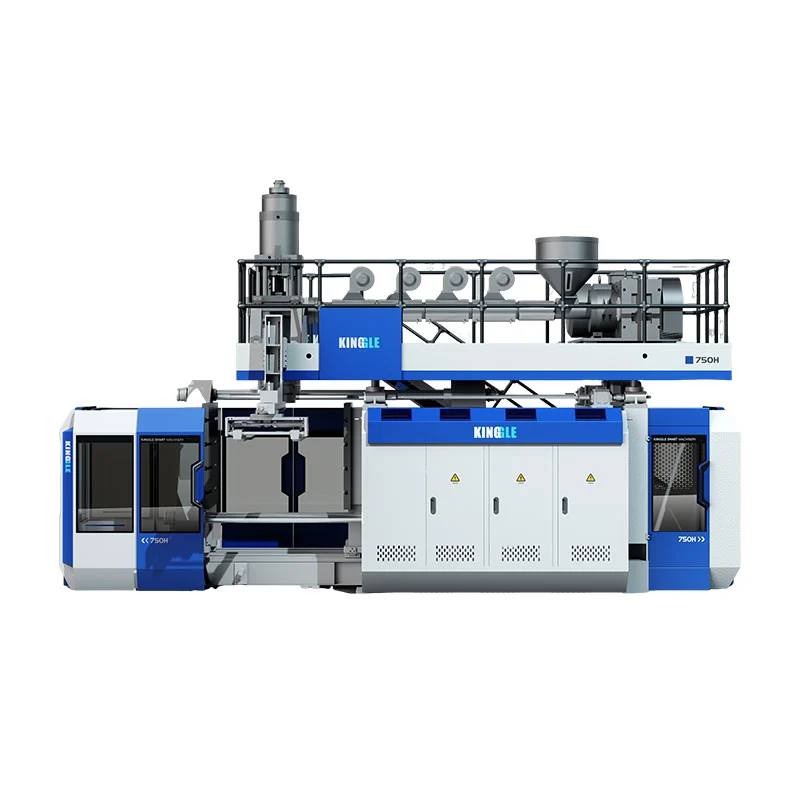

60L "" mochini o nang le masela

Model:KGB90A

Ho bula mochini ona o tsitsitseng le ho koala le ho hula habeli ha ho hula khatello ea oli ka kotloloho, ho fokotsa ts'ebetso e phahameng le katleho. E na le sistimi ea hydralive ea ho fumana karabelo e potlakileng le matla a motlakase, 60L e bokellanang le lihlahisoa tse ngata tse tsoang ho mekhahlelo e menyane.

Buka ea Buka ea 60LBoima: 14T

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa Specification Application

Mohlala o tloaelehileng oa KGB90a, o tšoantšetsa hlooho e kholo ea popelong e nang le motlakase oa "moog 100 bophara, letsoho la roboto Mochine ona oa 60l o bokella o loketse lits'ebetso tse fapaneng, ho kopanyelletsa le lijana tsa mochini tsa chefo, le litanka tsa makoloi, likoloi tsa koloi le lithibelo tsa sephethe-phethe.

Likarolo le menyetla

Mohlala ona ke tšilafalo e tsitsitseng le e koalang, o sebelisa mold katiba ea tlala ea habeli ea thae e habeli ea morusu
● Simplinder Direrind Letoto
● Moruo oa boholo ba 60l
● E loketse lijana tsa batho ba koahelang lik'hemik'hale, lintho tse kholo, tsa koloi ea li-ab tailfins, jj.
● A sebelisa mahlale a ikhethang, a hlomamisitsoeng a khatiso, matla a maholo a khmer, lebelo le potlakileng, potoloho e khuts'oane ea lisepa

60L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Fixed open- closing type Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB90A
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

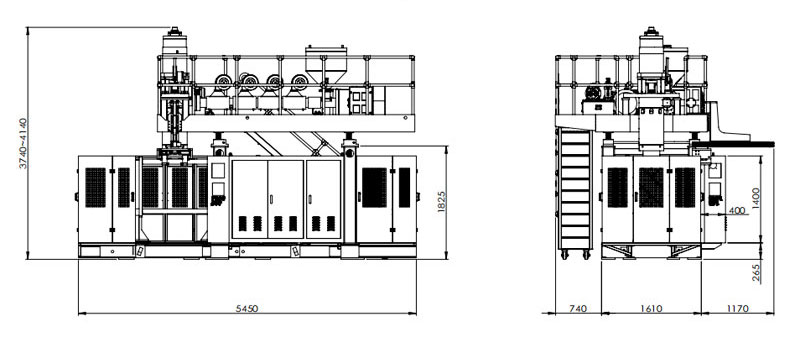

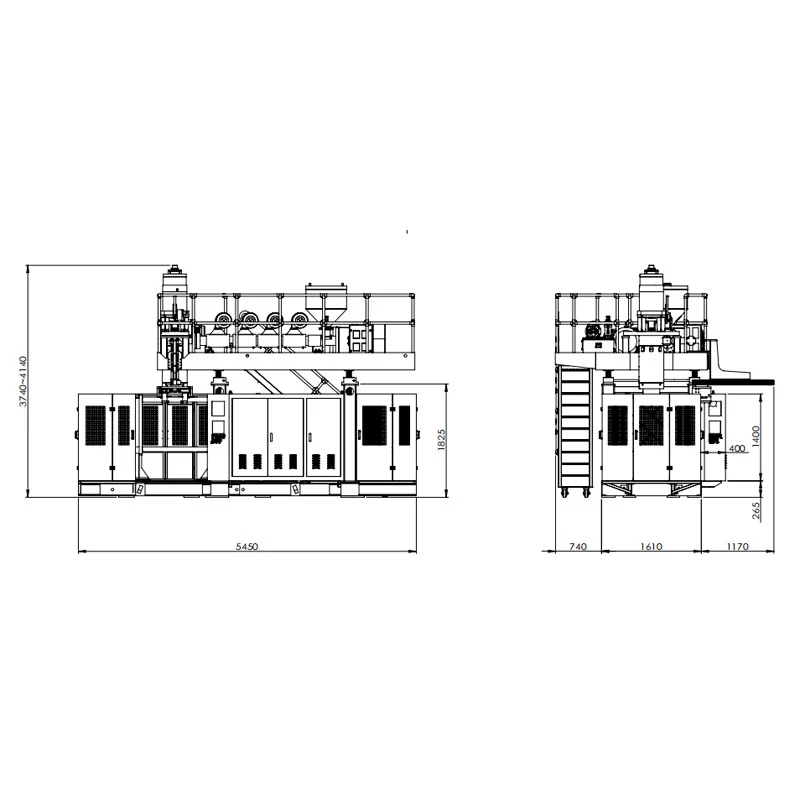

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	14 T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen opening stroke	450 MM-1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM x 980 MM
6	Mold thickness	460 MM-550 MM
Power
1	Servo oil pump motor power	18.5 KW
2	Servopump displacement	150 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW-45 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr-160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fan power	0.5 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Max die-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
