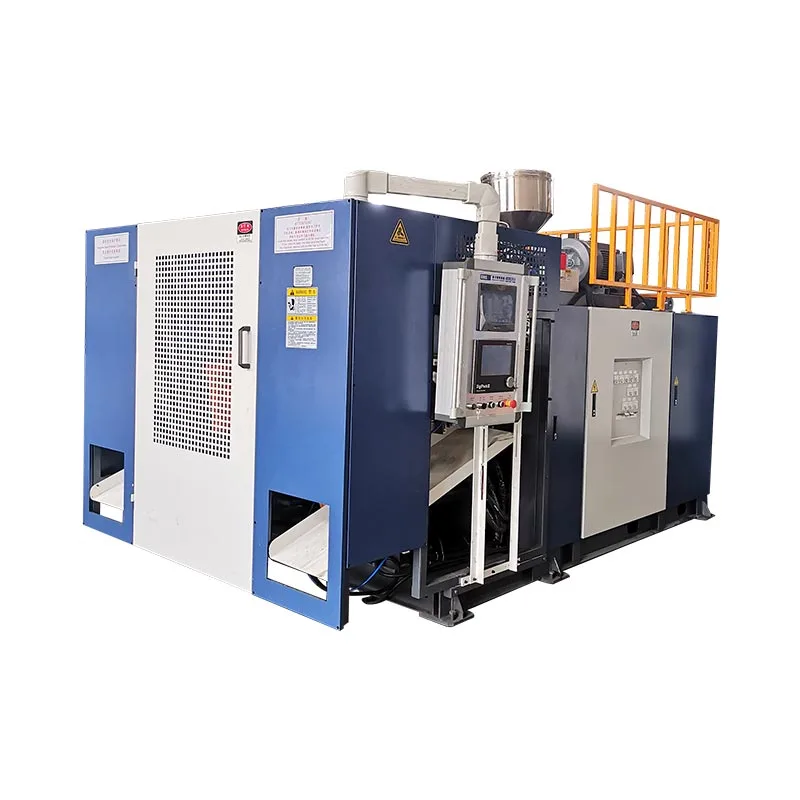

Machine oa methapo ea bohlano ea methapo ea kutlo

Model:KGB5D

Fokotsa tlhahiso ea hau ka mochini oa rona oa bohlasoa ba 5l habeli oa methapo ea methapo ea kutlo ea bohlano. Mochine ona o phahameng o fanang ka taolo e potlakileng, ho kenyelletsa le sethala sa hlooho se bolaeang libaka tse bolaeang bongata.

Buka: 5lBoima: 5.2t

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa Specification Application

Ho tloha ka libotlolo tse nyane tsa bophahamo ho lijana tse kholo tsa 5l, mochini oa seteishene ea methapo ea 5l habeli o tiisa tlhahiso e lekaneng le boleng bo sa fetoheng. E loketseng lits'ebetso tse fapaneng, Ho kenyeletsoa sesepa sa mochini oa litšila tse khanyang tsa mochini oa li-sounding e fa mefuta e ikhethileng ea tlhahiso le ho holisa ho khutla ha hau ho tsetela.

Likarolo le menyetla

● Ho fetolela seterateng sa "skal-Station", ho sebelisa Valvetle ea Throser ea Buffer Throttle bakeng sa Mold Shifting, e sebetsang le e tsitsitseng
● Ho fepa ka ho fepa foromo ea setsi
● Tsamaiso ea taolo ea elektroniki e emela taolo ea Mitsubishi PLC, le lithupelo tse ikemetseng tsa libuka li tsamaisa khalemelo le phetoho.
● Molumo o phahameng oa sehlahisoa ke 5l, e leng lisebelisoa tse ratoang tse thathamisitsoeng tse nang le tšireletseho bakeng sa tlhahiso e ka tlase ho 2-5l.
● Ho latela litšobotsi, e ka aroloa ka mokatong o le mong, mokatong o le mong, mokato o meraro, mohala o pepeneneng, jj.
● Sisteme ea Hydraulic e amohela moralo o fapaneng, katleho e phahameng le lebelo le potlakileng

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
