Litanka tsa metsi tsa 1000l Ibc

Model:KGB1000L- IBC

Ho ba le matla le botsitso ba litanka tsa metsi tsa KGB1000l li bokella mochini o bolileng, boima ba 'mele o fetang lithane tse 55 ho fokotsa ho sisinyeha le ho fallisoa. Li-Stad tsa Li-Thie tsa Double Doud li lithunya tsa botona le botšehali bohareng bo bile ba li alosa esita le khatello ea maikutlo le khatello ea maikutlo le khatello ea maikutlo ho pholletsa le hlobo, ho lokisa ho nepahetseng ha tlhahiso.

Buka ea Buka: 1000lBoima: 55t

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa Specification Application

Litae tsena tsa metsi a 1000l tsa IBC li bokella le ho feta tse phallang theknoloji ea theknoloji le tlhahiso ea likarolo tse ngata bakeng sa litšenyehelo le ho ntlafatsoa ha sehlahisoa. E loketseng bakeng sa ho hlahisa lisebelisoa tse kholo, ho kenyelletsa le likokoana-hloko tsa mochini oa tanka tse nang le meroho ho isa ho 1000l, ho etsa litaoana tsa oli tsa koloi e kholo le tse ling. Iteame US Kajeno ho qotsitsoeng ka mokhoa o hlophisitsoeng 'me u hlahlobe theko ea rona ea tlholisano ea Tank ea Tlholisano ea Tank.

Likarolo le menyetla

Lisebelisoa tse ka kakaretso li ka fihla ho lithane tse fetang 55, li ka fokotsa ho kopanya le ho fafatsa mochini le ho ntlafatsa ho nepahala le botsitso.
● Lithako tsa li-daenal habeli le li-crunar tse tharo bohareng, template e hatisoa ka mokhoa o tetetsoe ka botlalo ebile ha e holofetse habonolo
● Matla a sekang a mangata a fokotsa litšenyehelo tsa tlhahiso le ho ntlafatsa tsitsipano ea sehlahisoa
● E loketseng tlhahiso ea lihlahisoa tse kholo tsa polasetiki tse kang litora tsa metsi, litanka tsa polokelo, lijana tsa lik'hemik'hale, jj.

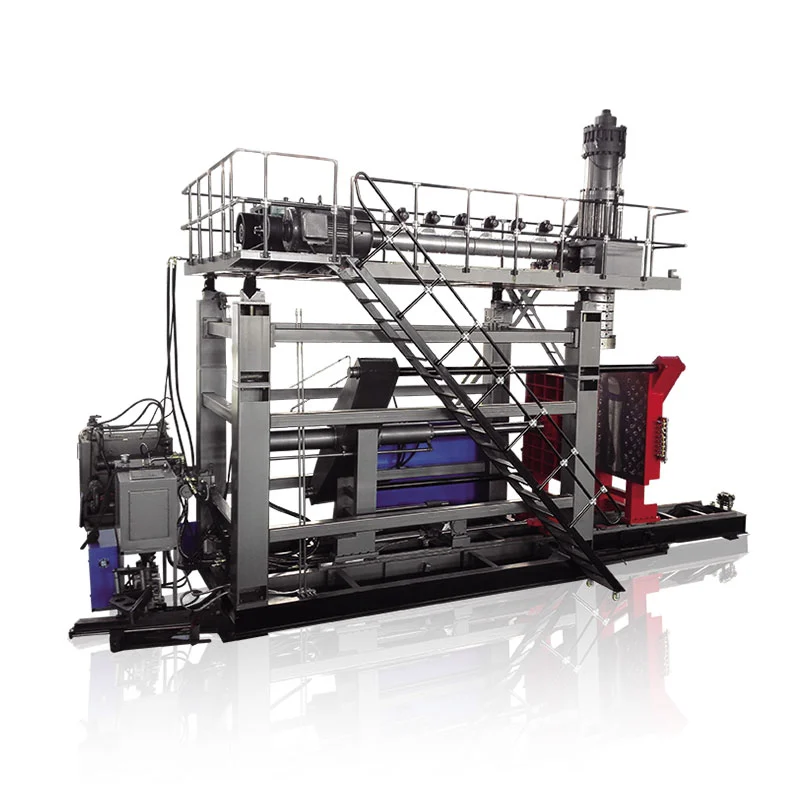

1000L IBC water tanks accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGS1000L-IBC
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	150 L
3	Machine Dimension(L×W×H)	9.5 M x 5.1 M x 6.5 M
4	Machine weight	55 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1800 MM x 1600 MM
3	Platen opening stroke	1150 MM - 2700 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1600 MM x 1500 MM
6	Mold thickness	1200 MM - 1400 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	2 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW - 150 KW
Extruder unit
1	Screw diameter	100 MM x 2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	45 L
5	(PE)Accumulator weight	33 KG
