Mechini e nang le matla a makhulo a 60l

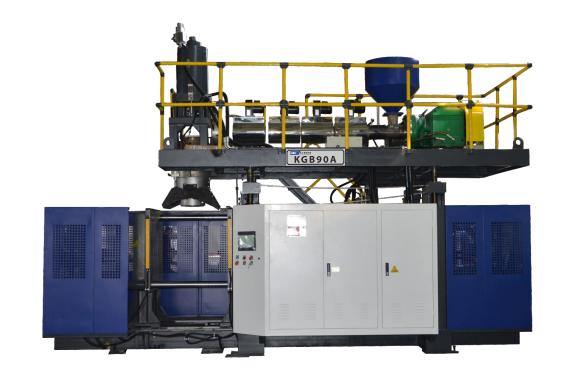

Model:KGB90AP

Bakeng sa KGB90AP, mochini o sebetsang ka matla oa bosholu o nang le matla a maputsoa E etselitsoe ka mokhoa o khethehileng bakeng sa lits'ebetso tsa mochini oa likonopo tse peli tsa mechine e 'mala oa 60l 60L

Buka ea Buka ea 60LBoima: 15t

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa Specification Application

KGB90AP 60L MACUMULAN MAN MAN MAN CODING PUSELETSO E FIHLETSEHILE e ka lekana le mekato e habeli kapa litlhoko tsa tlhahiso ea mmala o habeli ho atolosa Sehlahisoa sa Rang.
E kenyelletsa bophahamo ba moig ea 100, letsoho la liroboto le ho foka ka tlase Sisteme, ntlafatsa tlhahiso le boleng ba sehlahisoa. Mochine ona oa maemo e loketse likopo tse fapaneng, ho kenyeletsoa la lik'hemik'hale tsa lik'hemik'hale ho thothomela Liroto tsa mochini, polasetiki ea ho iphelisa ka polasi ea polasetiki ,.

Likarolo le menyetla

Mohlala ona ke tšitiso e tsitsitseng ea ho bula le ho koala, ho sebelisa molamu o habeli Li-synchronous morung o koalang mochine oa mechanism, le khatello ea mohloaare e tobileng Holimo
Boloka Cylinder Dist Series
Boholo ba Buka ea 60L
Xolbox, jj.
Ho sebelisa mahlale a ikhethang, a hlomphuoang a ho hatisoa ha armor. Matla, lebelo la lehlaka le potlakileng, potoloho e khuts'oane ea sehlahisoa

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB90AP
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

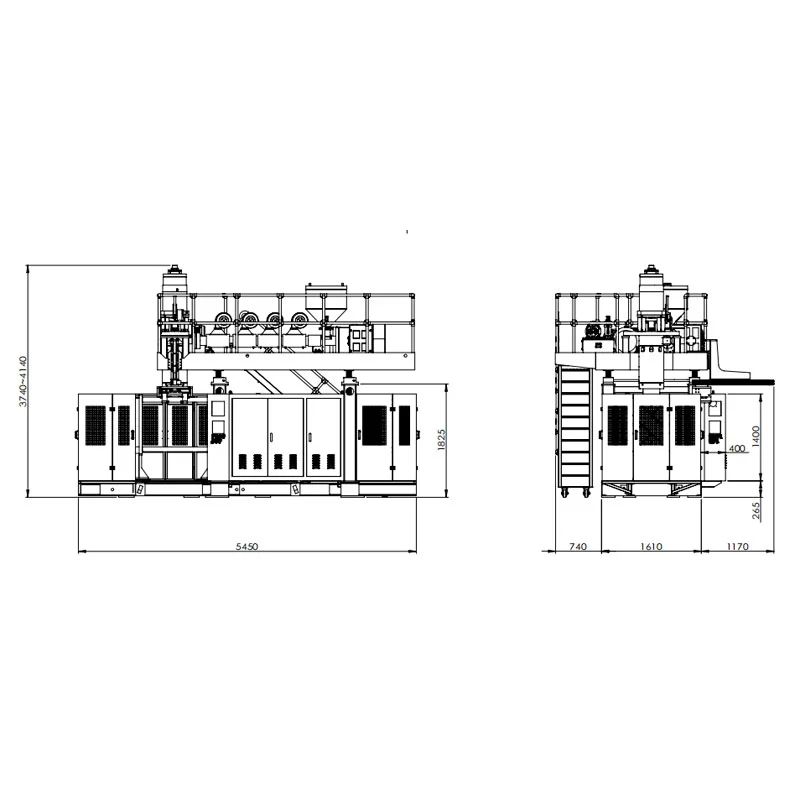

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	15T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen openingstroke	450 MM -1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM×980 MM
6	Mold thickness	460 MM -550 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	150 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW - 45 KW
Extruder unit
1	Screw diameter	2*70 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr - 160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fanpower	0.5 KW
7	Extruder motor power	2*22 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Maxdie-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
