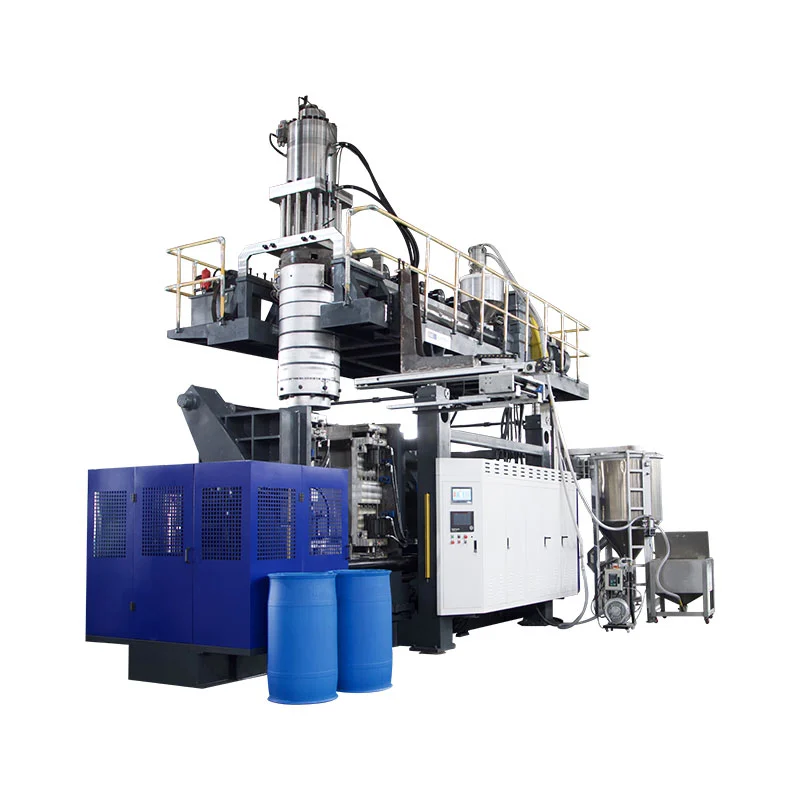

10l e bokella mochini o nang le mapolanka

Model:KGB70A

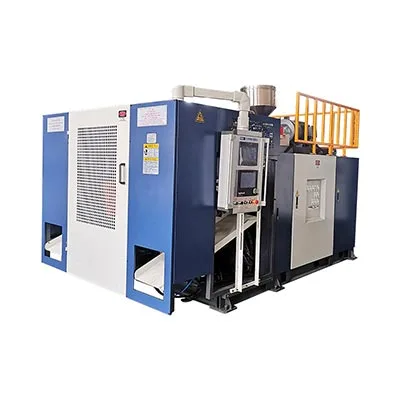

KGB70a ke mochini o feto-fetohang oa 10l o bokella mochine o bopehileng o entsoeng ka bopetsoeng o etselitsoeng boqapi ba li-botlolo tse bobebe tse 15 Joaloka moetsi oa mochini oa metsi a e etellang pele oa metsi, re fana ka lithallo tse hlophisitsoeng ho fihlela litlhoko tsa moreki. Mochine ha se feela bakeng sa libotlolo tsa metsi, lijana tsa mokokotlong tsa mokokotlo le tlhahiso ea kokoanyana ea letsatsi le letsatsi, empa hape le lihlahisoa tse nyane empa tse khethehileng tsa sebopeho. Mochini ona o kopa litlhoko tse fapaneng.

Buka ea: 20lBoima: 7.8T

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa Specification Application

Kgb70a 10l e bokella mochini o nang le mapolanka ke o bulang le ho koala Mohlala, ke mohlala ofe o atileng habeli ho hula meqathatso ea ROD Cynchronous ho kopanya mechini, oli Srilinda e tobileng khatello e tobileng ea hlobola hlobo, accumela cylindar Diver Sefila. Taolo ea hydralic Sertionso ea Hydralic Servert, lebelo la karabelo e potlakileng le ho boloka matla.
Khoeli e eketsehileng bakeng sa tlhahiso eo e khethehileng ea sebopeho sa sebopeho sa moralo, e ka khona Laola sebopeho le botenya bo nepahetseng haholoanyane.

Likarolo le menyetla

Moetso ona ke ho bula sefahleho, o sebelisa mokhoa o mong oa ho koala mochini o koalang mochine o koalang mokhoa oa koana o tobileng oa oli
● Simplinder Direrind Letoto
● Boholo ba Buka ea 20L

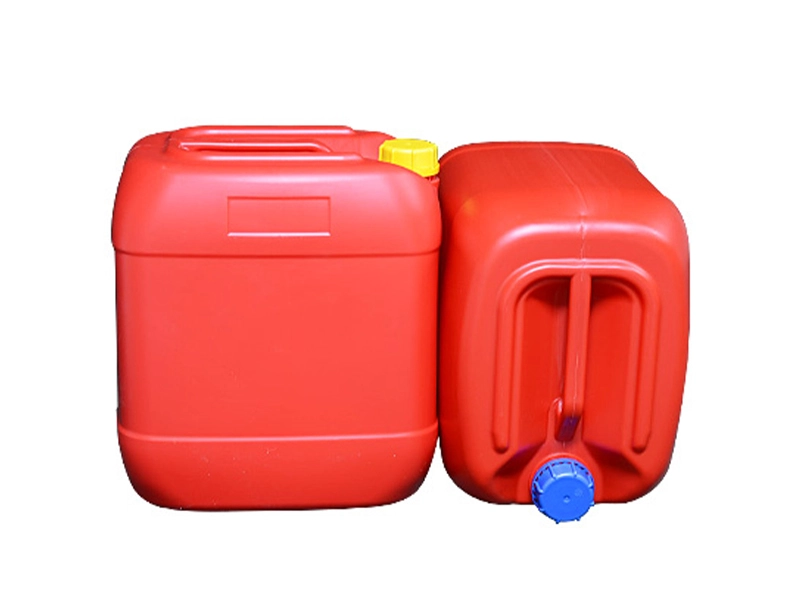

● E loketseng libotlolo tsa metsi, thepa ea meriana le setša tsa letsatsi le letsatsi, jj.
● Ntho e ikhethang ke hore e laoloa ke sistimi ea hydraulic ea hydraulic ho fihlela karabelo e potlakileng ea ho nka khato le ts'ebetso e phahameng ea matla.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB70A
Specifications
1	Max container capacity	20L
2	Output(dry Cycle)	700 PC/HR
3	Machine Dimension(L×W×H)	4.3 M x1.7 M x3.9 M
4	Machine weight	7.8 T
Clamping Unit
1	Clamping force	130 KN
2	Mold platen size(W×H)	680 MM x 600 MM
3	Platen openingstroke	300 MM - 850 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	460 MM×600 MM
6	Mold thickness	310 MM - 380 MM
Power
1	Servooil pump motor power	11KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	0.7 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	18 KW-22 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.5 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	20 KW
3	Maxdie-pin diameter	180 MM
4	Accumulator capacity	3 L
5	(PE)Accumulator weight	2.25 KG
