Mechini ea mehloli ea 15l habeli

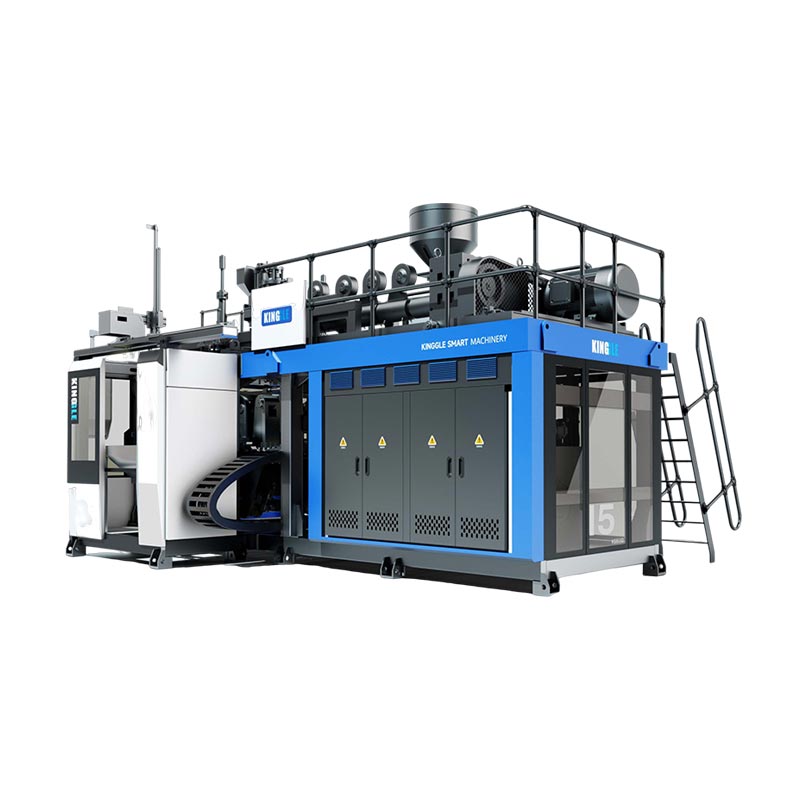

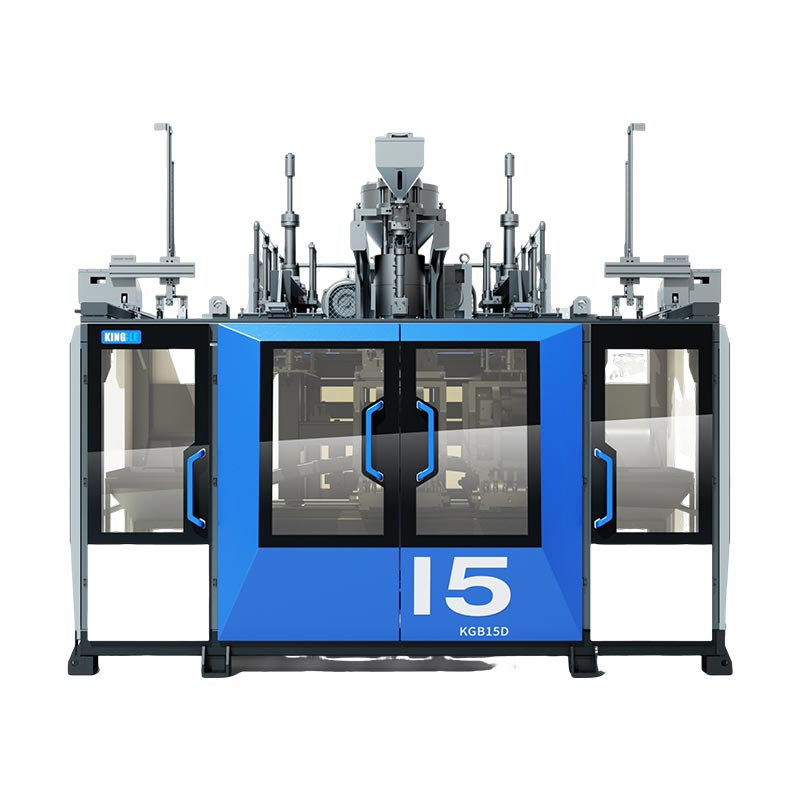

Model:KGB15D

Fokotsa tlhahiso ea hau ka mochini oa rona o siiloeng habeli o tsoelang pele o sitisang ho bopa seteishene sa ho bopa Sethala sena se phahameng sa Perfor 2l se fana ka matla a bofokoli se matla se fana ka taolo e potlakileng, ho kenyeletsa le sethala sa hlooho se ammeng a bolaeang libaka tse fapaneng, ho amohela boholo ba setshelo.

Buka: 15lBoima: 12.5t

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa Specification Application

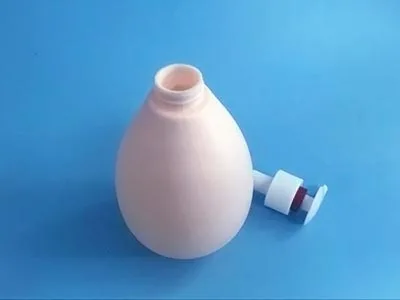

Ho tloha ka libotlo tse nyane tsa molumo ho isa ho lijana tse nyane tsa 15l, ho kenyeletsa le lits'ebeletso tsa mechine ea lithōle tsa polane ea lits'ila tsa barrel. E loketseng likopo tse fapaneng, ho kenyelletsa le lithunya tsa mochini tse kang shampoo tse kang shampoo, e fana ka puseletso ea hau mabapi le ho tsetela.

Likarolo le menyetla

Ts'ebetso ea Setsi sa Lihlahisoa, Kholiseho e Ikhethileng ea ts'ebetso ea tlhahiso
E na le sesebelisoa se phahameng sa boqapi se phahameng, seballo sa buffel teotso bakeng sa taolo e ntle e hlakileng, nako e telele ea ho fetoha le ho feta, e le seliba se tlase, beha tlhahiso e makatsang.
Setaelo sa Mitsubishi Plc taolo, Lenaneo la Lipalo tse Khanyang le Leholo, Lihloeo tsa Kopano bakeng sa Ts'ebetso ea Bo-'mè.
Re ka hlahisa lijana tsa 15L tse nang le karolo e le 'ngoe, leqeba, tse peli le mela e hlakileng kamoo ho hlokahalang, e loketseng ho kenya litlhoko tsa lik'hemik'hale, lijo le pharmasical.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15D
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450x2 PC/HR
3	Machine Dimension(L×W×H)	4.8M x2.9 M x2.8 M
4	Machine weight	12.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×550 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.1 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	110 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	120 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
