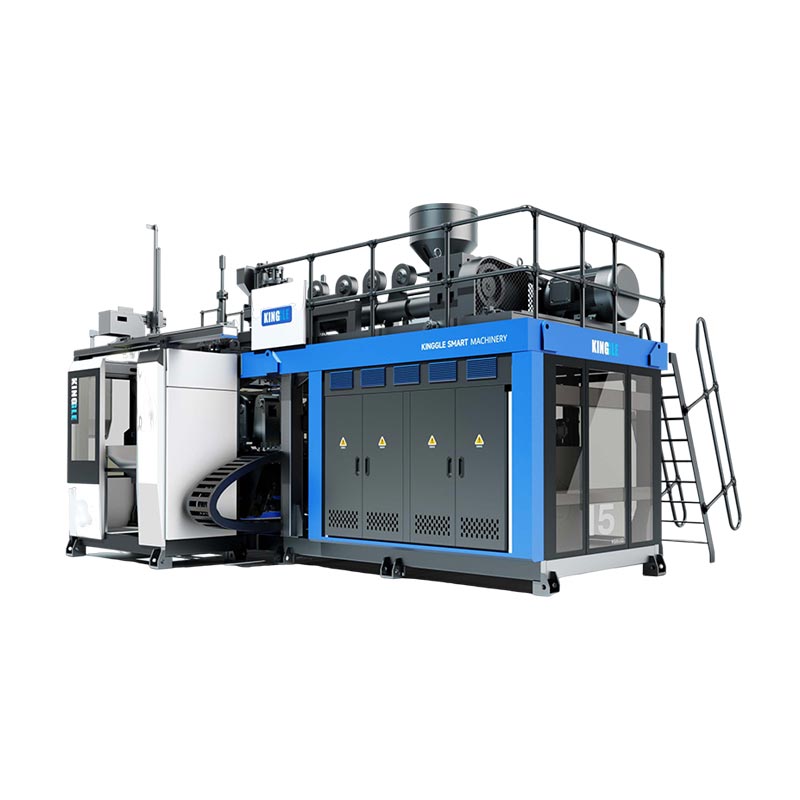

15L Setsi sa Seteishene sa Molding Moldding

Model:KGB15L

E etselitsoe tlhahiso e ngata haholo, seteishene sena se sa tsoakoang se le seng se ipapisang se ipapisitse le ho hlahisa lisebelisoa ho fihlela 15l. Moralo oa eona o fetotsoeng o lumella ho chencha e sa tsotelleng pakeng tsa tikoloho e le 'ngoe le e mengata, e netefatsa katleho e phethahetseng bakeng sa boholo bo fapaneng. U ka reka seteishini se le seng sa methapo e nang le mali ho tsoa femeng ea rona.

Buka: 15lBoima: 7.5t

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa Specification Application

Ho tloha boteng ba shampoo ho tsoa ho likopi tsa mochini oa li-blap tsa blap, mochini o le mong oa 15l o kopanya boemo bo phahameng le bo sa fetoheng. Phahamisa bokhoni ba tlhahiso ea hau ea tlhahiso le mochini ona o matla le o ikhethileng.

Likarolo le menyetla

Hlooho ea mochini e alima mokhoa oa ho fepa ka ho khetheha, o laola sekhahla sa ho phatloha, ho ntlafatsa matla a bopehileng, ho ntlafatsa matla a bopehileng le ho netefatsa tlhahiso ea boleng bo holimo.
Ho itšetleha ka mekhoa ea taolo ea elektroniki e entsoeng bakeng sa ts'ebetso e fapaneng ea li-paramente tse fapaneng, maemo a holimo, joalo ka mesebetsi e felletseng ea phetoho. Basebelisi ba ka etsa calibrame e nepahetseng habonolo ho latela maemo a sebele, e netefatsa hore tlhahiso e nka litlhoko tse fapaneng tsa 'maraka. E ka hlahisa lijana tse hlahisoang ka thata tse nang le likarolo tse fapaneng tse kang litlhokahalo tsa thepa ea lik'hemik'hale, lijo le masimo a ho hloekisa letsatsi le letsatsi.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15L
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450 PC/HR
3	Machine Dimension(L×W×H)	4.5M x2.2 M x2.8 M
4	Machine weight	7.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×500 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.8 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	75 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	100 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	30 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
