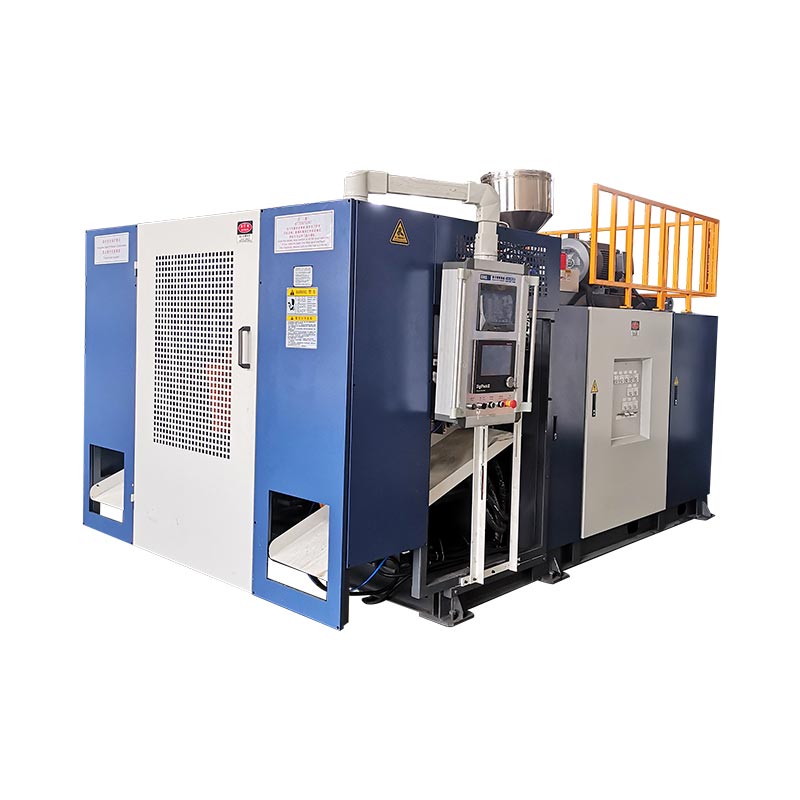

5L Setsi sa Seteishene sa Molding Moldding Moldding

Model:KGB5L

Ho feto-fetoha le maemo le katleho ea mochini oa rona o le mong o tsoelang pele o tsoela pele. E etselitsoe lijana tsa 5l, ho kenyelletsa mokhoa oa mochini o hlophisitsoeng, ho kenyelletsa khetho ea mochini o fuoeng o mong le o mong oa tlhahiso ea matla.

Buka: 5lBoima: 3.0t

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa Specification Application

Hore na o hloka seteishene sa mofuta o se nang thuso ea 5l sethala sa mochini oa " Ikopanye le Rona kajeno ho hlahloba litheko tsa rona tsa tlholisano mme o fumane hore na mochini o fe o phahamisa bokhoni ba tlhahiso ea hau.

Likarolo le menyetla

● Seteishene se le seng sa phetoho ea Phetolelo ea Phetolelo ea Phetolelo ea Phetolelo ea Phetolelo e Shifting
● Hlooho ea shoa e entsoe ka sistimi e bohareng ea ho fepa hantle, e ntlafatsa ho ajoa ka mokhoa oa ho ntlafatsa boleng ba sehlahisoa.
● Mokhoa o laolang oa elektroniki o tsoetseng pele o tsamaisoa ke Mitsubishil. PLC, 'me e tla le likotlo tse ikemetseng le tse nepahetseng habonolo.
● Ka bokhoni bo bongata ba sehlahisoa ba 5l
● Ho latela litšobotsi tsa sehlahisoa, e fana ka khetho e ikhethang ho kenyelletsa le meaho e 'meli e le' ngoe, habeli, le meaho e meraro, hammoho le mefuta e pepeneneng ea ho kopana le libaka tsa 'maraka.
● Sisteme ea Hydraulic e na le moralo o fapaneng, o fana ka ts'ebetso e phahameng le lebelo la karabelo e potlakileng, haholo-holo ho sebetsa hantle ka botlalo.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB5L
Specification
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	3.0 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MM x 450 MM
3	Platen openingstroke	188 MM -538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM - 310 MM
Power
1	Servooil pump motor power	15KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	Maxdie-pin diameter	150 MM
4	2Center distance of double die head	150-180MM
5	2MTMax die-pindiameter	80MM
