2L Setsi sa Seteishene sa Molding Moldding

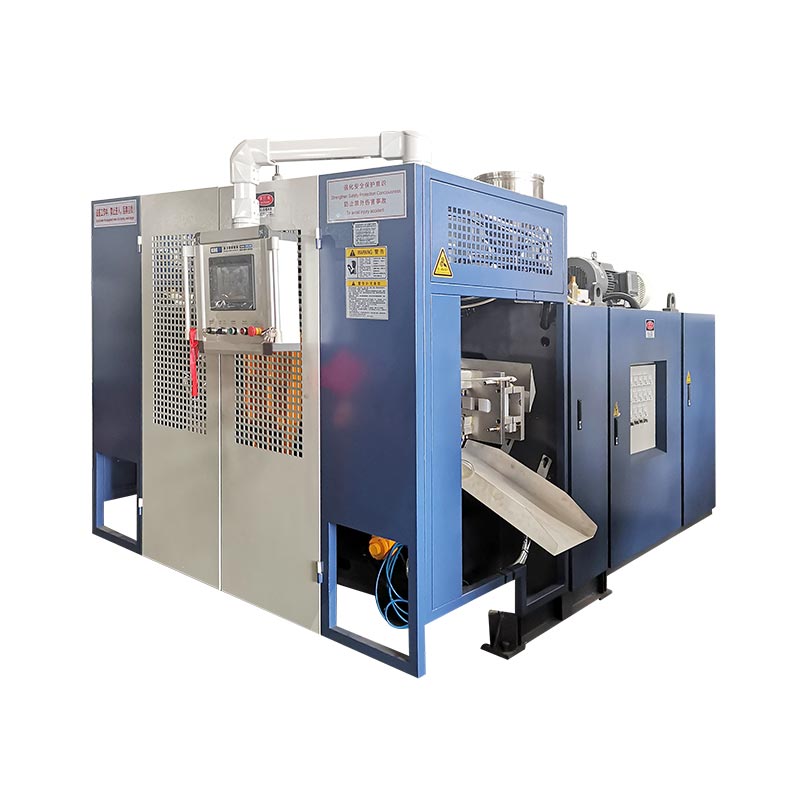

Model:KGB2L

Seteishene se le seng sa 2l se nang le meqhaka ea bolileng, se loketseng ho etsa tlhahiso ea Max 2l, se feto-fetoha le maemo. E fana ka khetho ea ho chencha tlhophisong ea hlooho e 2, ea boneng ho e fa eona e mengata, e e lumella ho amohela tlhahiso ea mechini e nyane e nang le methapo ea 100ml.

Buka: 2lBoima: 2.5t

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa Specification Application

Ho feto-fetoha ha maemo hona ho eketsa tlhahiso ea letsatsi le letsatsi, ho e etsa tharollo e nepahetseng bakeng sa bahlahisi ha ba batla ho matlafatsa tlhahiso ea sehlahisoa. Sebelisa seteishene sa sekhukhuni sena sa 2l se hlahisang mochini oa boea ho hlahisa shampoo bakeng sa shampoo, litlolo tsa ho hloekisa le metsi ho hloekisa ntlo. Bakeng sa libuka tse kholo, nahana ka mochini oa rona oa bohlano kapa oa 15l botlolo

Likarolo le menyetla

Mokhoa o le mong oa ho fetolela seteishini oa Phetolelo ea Borafeni oa Borapeli
● Hlooho ea shoa e entsoe ka sistimi e bohareng ea ho fepa hantle, e ntlafatsa ho ajoa ka mokhoa oa ho ntlafatsa boleng ba sehlahisoa.
● Mokhoa o laolang oa elektroniki o tsoetseng pele o tsamaisoa ke Mitsubishil. PLC, 'me e tla le likotlo tse ikemetseng le tse nepahetseng habonolo.
● Ho na le bokhoni bo bongata ba sehlahisoa 2l, e eme e le khetho e phahameng ea lijana tse tlase tsa lijana tse tsoang ho 50ml ho ea 2ml ho ea 2ml.
● Ho latela litšobotsi tsa sehlahisoa, e fana ka khetho e ikhethang ho kenyelletsa le meaho e 'meli e le' ngoe, habeli, le meaho e meraro, hammoho le mefuta e pepeneneng ea ho kopana le libaka tsa 'maraka.
● Sisteme ea Hydraulic e na le moralo o fapaneng, o fana ka ts'ebetso e phahameng le lebelo la karabelo e potlakileng, haholo-holo ho sebetsa hantle ka botlalo.

Specifications

serial number	Material PE、PP、PVC、PA...	Mold-moving series
serial number	Material PE、PP、PVC、PA...	Machine model:KGB2L
Specifications
1	Max container capacity	2L
2	Output(dry Cycle)	600 PC/HR
3	Machine Dimension(L×W×H)	3.1 M x 1.7 M x 2.5 M
4	Machine weight	2.5T
Clamping Unit
1	Clamping force	40KN
2	Mold platen size(W×H)	380 MM x430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM x 380MM
6	Mold thickness	160 MM - 300MM
Power
1	Servooil pump motor power	11 KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	50 L/min
7	Average energy consumption	12-18 KW
Extruder unit
1	Screw diameter	50 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	30 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	7.5 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	11KW
Die head
1	Number of heating sections	3 * 5 ZONE
2	Heating power	3.2 KW
3	1MTMaxdie-pin diameter	90 MM
4	2Center distance of double die head	130 MM
5	2MTMax die-pindiameter	60 MM
