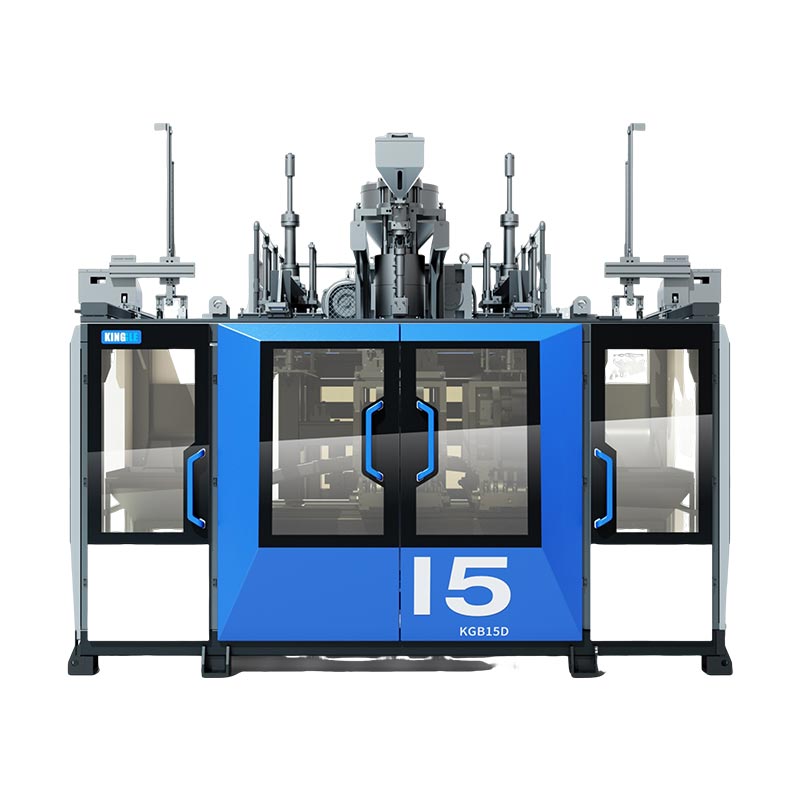

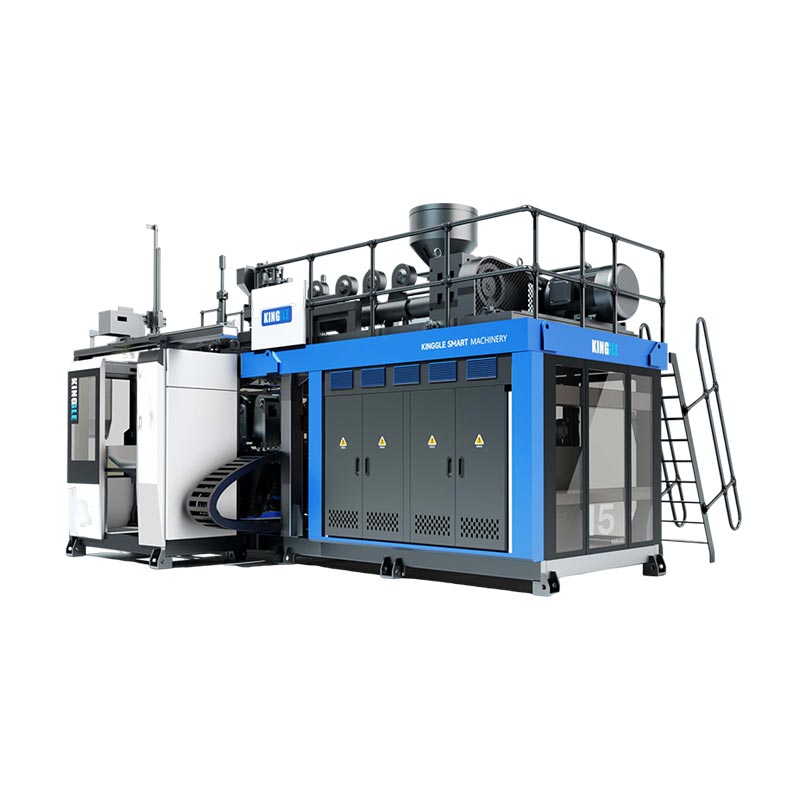

Speed Speed 15L Single Setsi sa Seteishene sa Molding Folding

Model:KGH15L

Bula Matla a hau a tlhahiso ka Speed ea KGH15l e nang le matla Sesebelisoa se kobehileng sa letsoho le kotlollang ho fana ka matla a mangata a bongobo, etsa botlolo ea botlolo / borrel sebopeho sa barrel.

Buka: 15lBoima: 7.5t

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa Specification Application

Lebelo la KGH15L Speed o batla ho ntlafatsa tlhahiso ea bohlale. Moralo oa eona oa mothapo oa tšehetso Katoloso ea Bokamoso le Lintlafatso, e Etsa Hore e lumellane le li-module tsa Automation joalo ka karolo e ikemetseng ea ho tlosa le tlhahlobo ea inthanete le tlhahlobo ea inthanete, ho thusa lifeme tsa ho sisinyeha lebisa indastering 4.0.

Likarolo le menyetla

Mochine o le mong o tsoelang pele o qapiloeng o le mong o etselitsoeng ho hlahisoa ka bongata, o fana ka maemo a mangata, a sebetsa ka bobeli bakeng sa lisebelisoa bakeng sa lisebelisoa ho fihla ho 15l. Bokhabane ba eona bo bocha bo etsa hore ho be le taolo e bonolo lipakeng tsa tikoloho e le 'ngoe le e mengata, e netefatsa ts'ebetso e nepahetseng ka boholo ba thepa e fapaneng.
Mochine ona e totobatse katleho ea eona e phahameng, e nolofallelitsoe phetoho ka potlako pakeng tsa liphetoho tsa ho ntlafatsa le ho fokotsa nako ea nako ea ho fokotsa nako. E boetse e tebile, e khona ho hlahisa lijana tse ngata tse tsoang ho botlolo ea shampoo ho Jerrycens, e e etsang hore e be le indasteri e fapaneng.
Ka tšobotsi e phahameng, e etsa tlhahiso ea tlhahiso e sa feleng ka bonnete, ho kopana le litekanyetso tse phahameng ka ho fetisisa. Ho feta moo, moralo oa eona o theko e boima o fokotsa litšenyehelo tsa ts'ebetso ha u ntse u ntlafatsa litšenyehelo. Ha mochini o hahile ho tšepahala, mochini o etsa lintho ka phello e tsitsitseng, leha o le maemong a tlhokomeliso e phahameng.
Ho phahamisa bokhoni ba hau ba tlhahiso le mochini ona o matla le o lumellang bo hlapahalang bo fofang boleng ka bobeli le katleho.

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGH15L
Specifications
1	Max container capacity	15 L
2	Output(dry Cycle)	450 PC/HR
3	Machine Dimension(L×W×H)	4.5 M x 2.2 M x 2.8 M
4	Machine weight	7.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM -680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM x 500 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.8 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	25-34 KW
Extruder unit
1	Screw diameter	75 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	100 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	30 KW
Die head
1	Number of heating sections	3 * 8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	240 MM - 280 MM
5	(PE)Accumulator weight	150 MM
