Mochine oa polasi ea polasi ea polasetiki

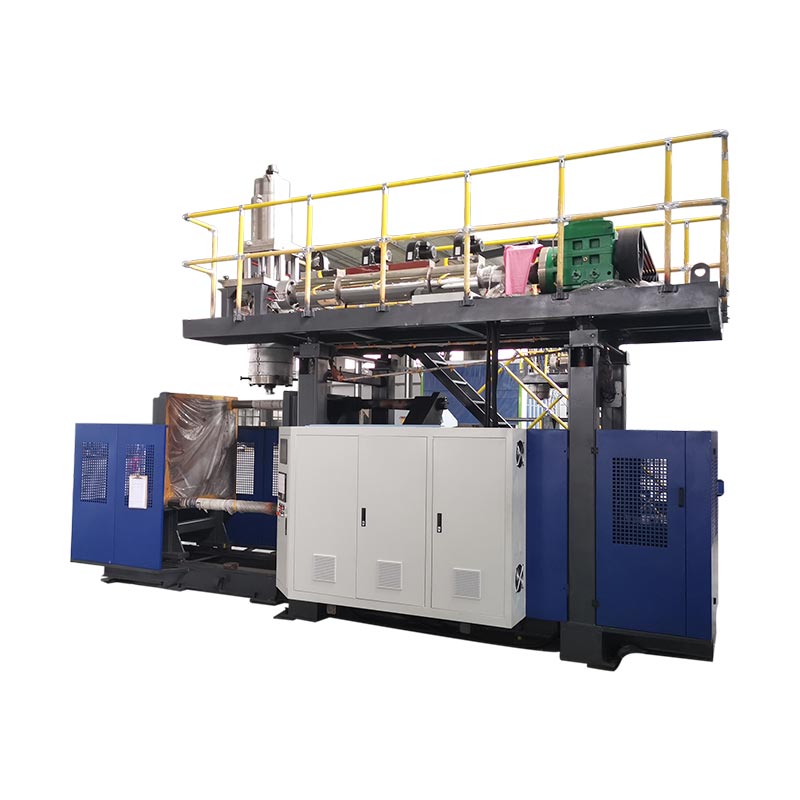

Model:KGS120Y

Kinggle Kgs120y ke mochini oa polasetiki o tšoarellang oa polasi ea polasetiki e nang le matla a mapolanka a potileng mapolanka. Litlhoko tsa polasetiki ka botlalo kapa litlhokahalo tsa mochini oa liphallelo tsa polasetiki, e fana ka meralo e hlophisitsoeng le boleng bo phahameng, o u fa pheletso ea tlholisano.

Buka ea Buka: 2000lBoima: 42t

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa Specification Application Workshop

Kgs 120y 180 Machine oa polasi ea polasetiki e phoroselang o theha sehlopha sa polasetiki Sehlahisoa sa mofuta, joalo ka ha u ntse u fantisitse mochini o ka phethahatsa litlhoko tse khethehileng tsa tlhahiso Ka tlhahiso e lebelo haholo ho boloka litšenyehelo tsa yuniti.
E kenyelletsa bophahamo ba moig ea 100, letsoho la liroboto le ho foka ka tlase Sisteme, Ntlafatsa tlhahiso le boleng.

Likarolo le menyetla

E sebedisoang bakeng sa ho etsa lihlahisoa tsa indastering e fapaneng. Ebang ke lijana tse kholo tsa matla khoebong ea lik'hemik'hale, liboto tse thata tse nang le likarolo tse kholo tsa masene, kapa mabokoseng a bokelloang hantle ho kopana le litlhoko tse fapaneng.
Ts'ebetso ea ho iphepa e nka theknoloji ea ho kuta - 'me e ntlafatsoa e ipapisitse le litšobotsi tsa mochini o phahameng oa mochini o phahameng oa mechini e 120 blowing. Tsamaisa ka nepo sekhahla sa phallo le thepa ea thepa e tala ho netefatsa bothateng bo lekanang bo lebisang sebopeho sa sehlahisoa, 'me u qobelle ho fepa ka letsopa le sa lekanang hantle.

Specifications

serial number	Material HDPE…	Mold closing oil cylinder(three cylinders)
serial number	Material HDPE…	Machine model:KGS120Z
Specifications
1	Max container capacity	2000 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	8.3 M ×3.4 M × 6.8 M
4	Machine weight	42 T
Clamping Unit
1	Clamping force	1800 KN
2	Mold platen size(W×H)	1600 MM×1900 MM
3	Platen openingstroke	600 MM-1800 MM
4	Platen moving stroke	700 MM
5	Max mold size(W×H)	1650 MM×19000 MM
6	Mold thickness	830MM - 1030 MM
Power
1	Servooil pump motor power	25 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	2 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW -130 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	30 L/D
3	Melting capacit for HDPE	350 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	32.5 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	132 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Maxdie-pin diameter	800(950) MM
4	Accumulator capacity	45(60) L
5	(PE)Accumulator weight	33(45) KG
