Mechini ea mehloli ea 15l habeli

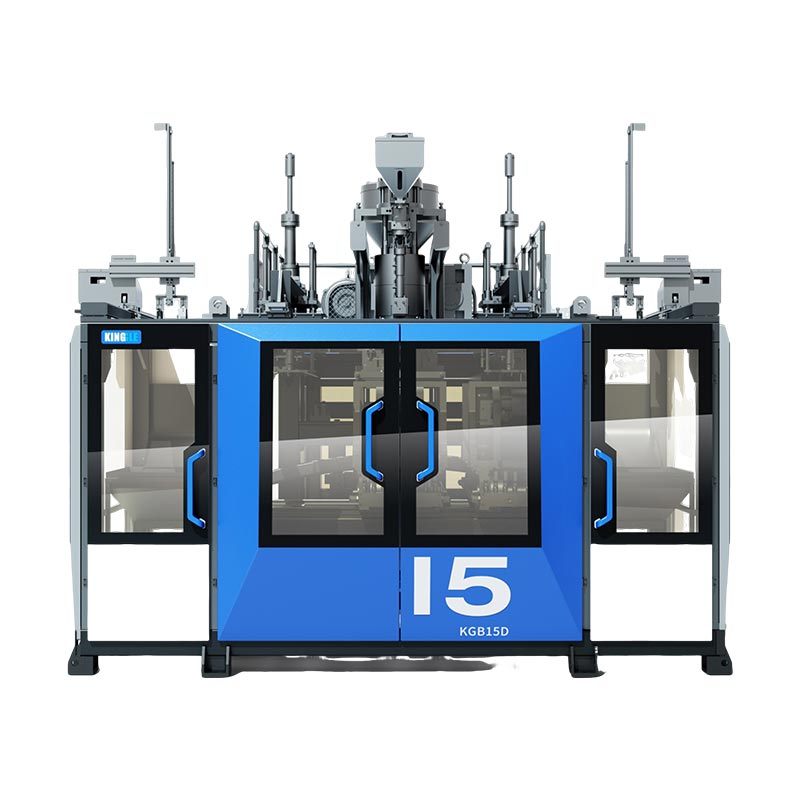

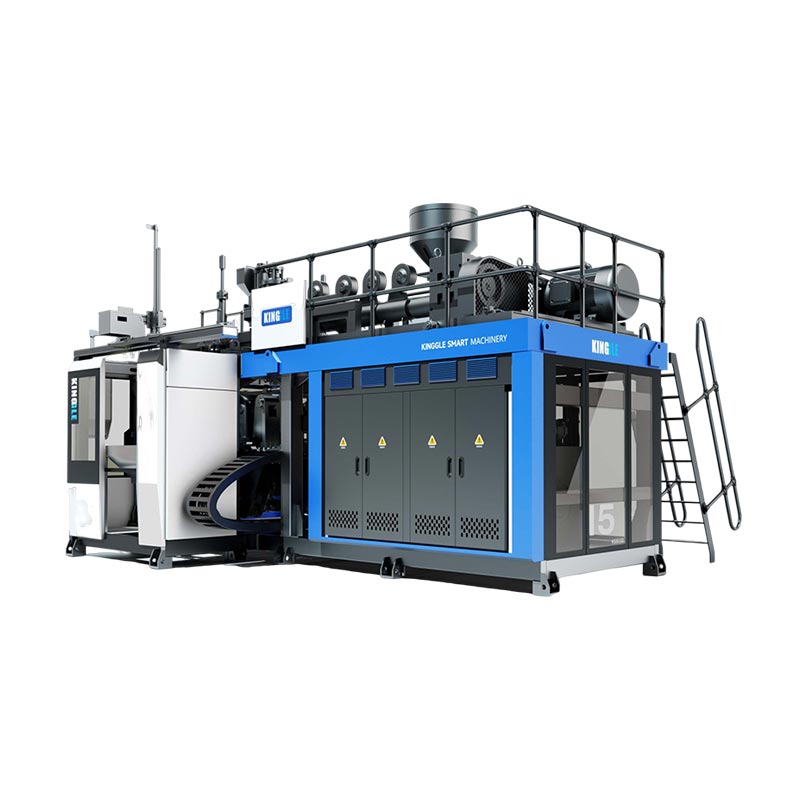

Model:KGH15D

QETELLO HO QETELLO KAPA LITLHAKISO TSA HAO LE KGH15D E phethahetse bakeng sa li-moding tsa mochini oa 10l o ikemetseng joalo ka libotlolo tsa 10l le 15l Botlolo ea hau

Buka: 15lBoima: 18.5t

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa Specification Application

Qeto ea hau ea botlolo ea hau ka kgh15d, mochini oa boleng bo holimo oa 15l o nang le methapo e phahameng ea 15l ho fafatsa lintho tse ncha. E etselitsoe likopo tse kang 10l le 15l Botlolo ea 15l, KGH15D e netefatsa tlhahiso e lekaneng ea lisebelisoa tsa boleng bo holimo le ho nepahala ho ikhethang. Ebang ke ntho e kholo kapa tloaelo Lits'ebetso, mochini ona o tiisa tlhahiso e kholo ea top, e u thusa ho lula pele 'marakeng. Ka likarolo tse tsoetseng pele le ts'ebetso e tšepahalang, The KGH15D e fana ka tharollo e phethahetseng bakeng sa likhoebo tse batlang ho ntlafatsa tlhahiso le ntlafatso ea sehlahisoa.

Likarolo le menyetla

Ho eketsa tlhahiso ea hau ka mochini oa rona o tsoelang pele o tsoelang pele o tsoelang pele o hlakollisoang o tsoelang pele, o etselitsoe lisebelisoa ho fihla ho 15l. Ka liphetoho tse nang le taolo e bonolo (2, 3, libaka tse 4 tse nang le mefuta e mengata, e tsoa ka lijana tse nyane le litlolo tsa polasetiki, li boloka litholoana tse lekanang le tse sa fetoheng.
E loketseng likopo tse kang shampoo, sesepa sa litlolo, mochini ona o fana ka tlhahiso ea lebelo le phahameng ha o ntse o boloka boleng bo holimo. Phapang ea eona le moralo o sebetsang o thusa ho fokotsa litšila le ho eketsa tlhahiso, o e etsa tharollo e theko e boima e tiisa hotele ea hau.

Specifications

serial number	Material PE、PP、PVC、PA...	High speed movement mode(curved arm)
serial number	Material PE、PP、PVC、PA...	Machine model:KGH15D
Specifications
1	Max container capacity	15 L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	5.6 M x 3.9 M × 3.5 M
4	Machine weight	18.5T
Clamping Unit
1	Clamping force	200 KN
2	Mold platen size(W×H)	580 MM x500 MM
3	Platen openingstroke	320 MM -800 MM
4	Platen moving stroke	720 MM
5	Max mold size(W×H)	700 MM -500 MM
6	Mold thickness	350 MM -450 MM
Power
1	Servooil pump motor power	22 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.5 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	140 L/min
7	Average energy consumption	40 KW -50 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	180 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	55 KW
Die head
1	Number of heating sections	3 * 8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	240 MM -280 MM
5	(PE)Accumulator weight	170 MM
